4K@60Hz Live Streaming Encoder Real Time Local Loopout for FB YouTube Twitch IPT
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Playable Media Format | AVI |
| Processor | Penta Core |
| Color | Black |
| MPN | Dose Not Apply |
| Brand | DDMALL |
| Audio/Video Outputs | HDMI |
| Type | Dongle |
| Unit Type | Unit |
| Maximum Resolution | 1080p (FHD) |
| Manufacturer Warranty | 3 Years |
| Model | HEV-10 |
| Connectivity | HDMI |
| Operating System | Universal |
| Storage Capacity | 16Mbps |
| Unit Quantity | 1 Unit |
| Product Line | DDMALL |

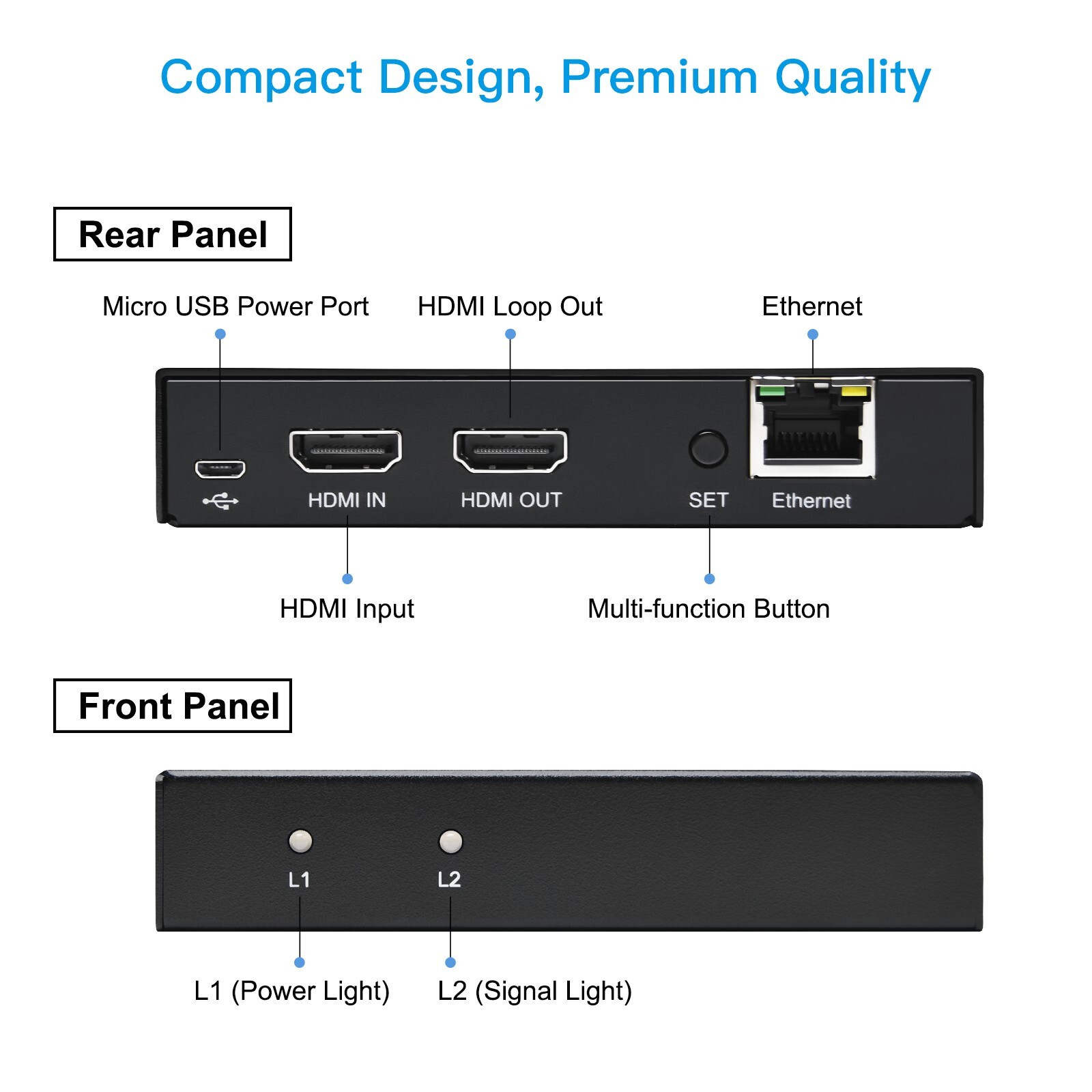

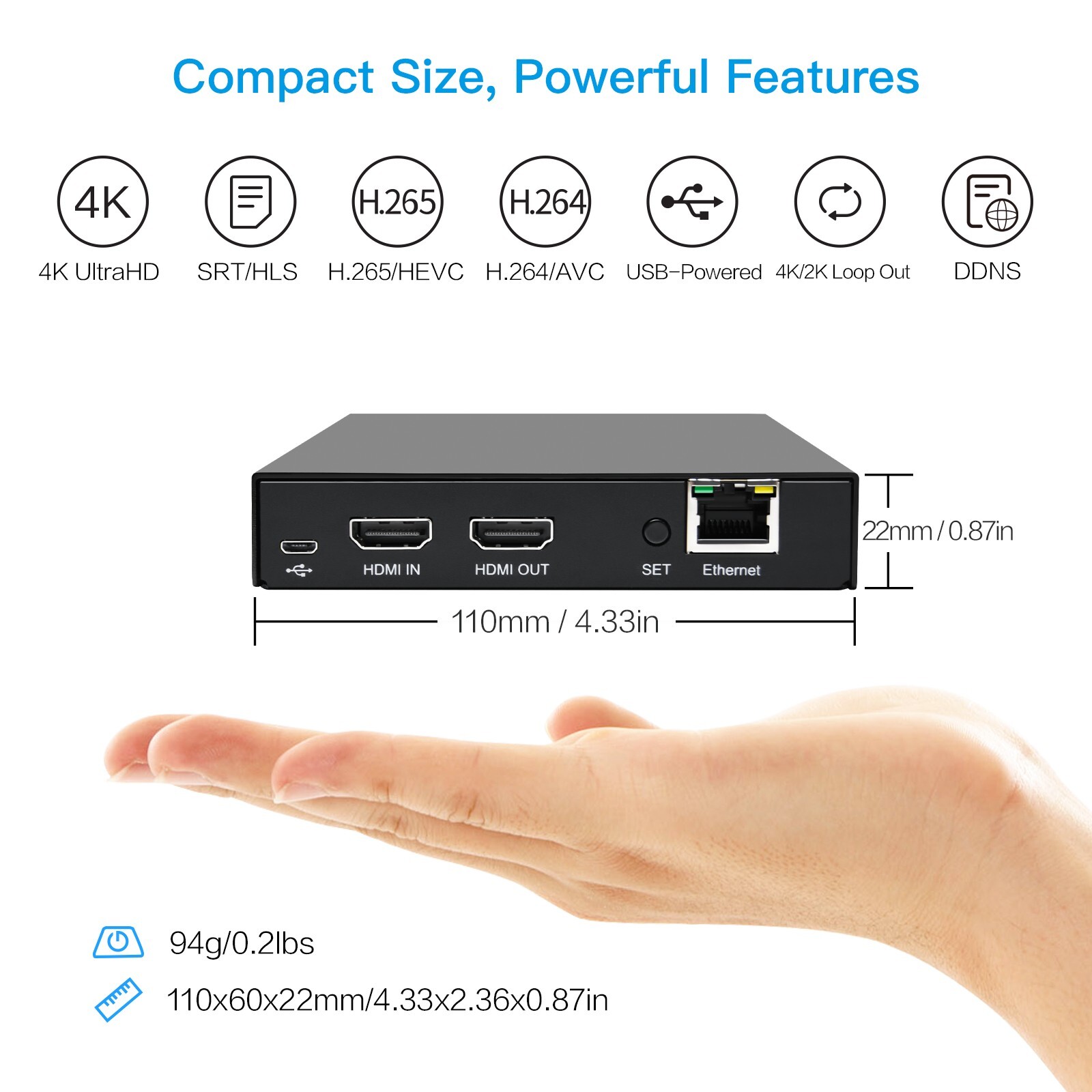

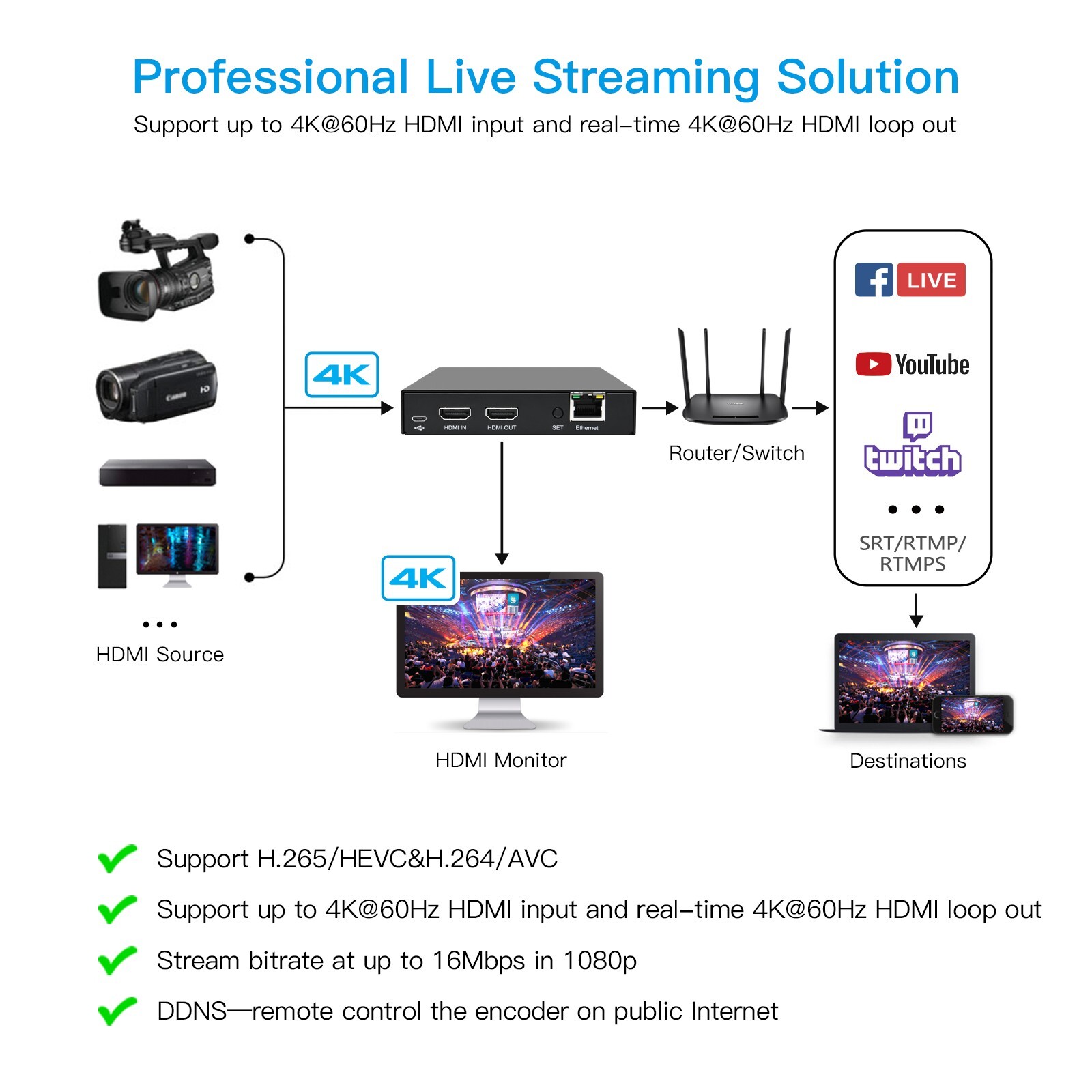

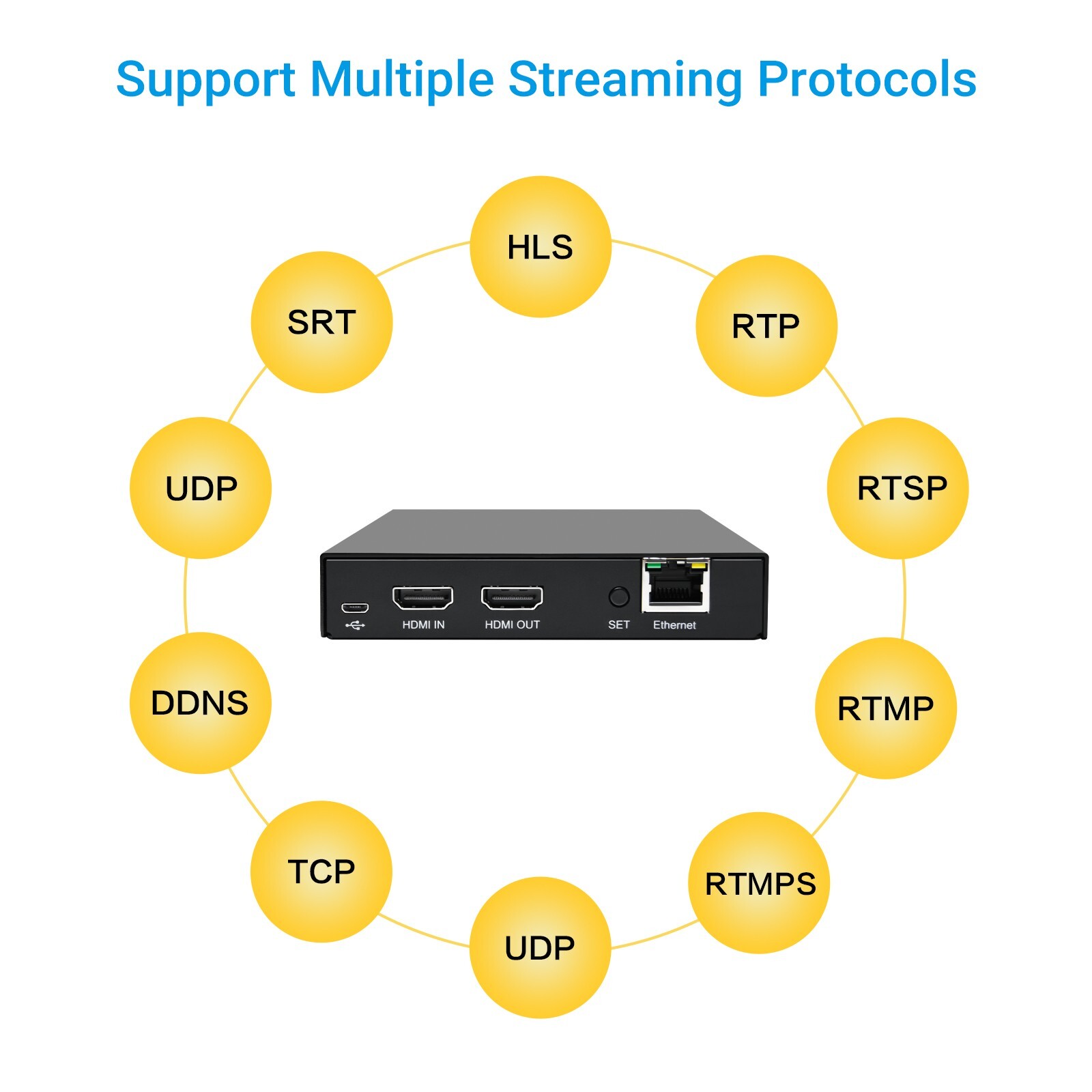

DDMALL HEV-10 is a compact HEVC and AVC HDMI video encoder with 4K@60Hz HDMI Input and Real Time 4K@60Hz Local Loopout.Compact video encoderThe live streaming encoder is perfect for the live streaming applications with frequent move or tiny device installation space.Energy Efficient & USB-PoweredUltra low power consumption (only 3.4W). the live encoder accepts power from USB port of signal source or mobile power bank with power adapter-free.Multiple streaming protocolsHEVC and AVC live streaming encoder，Support various protocols such as SRT, HLS/HTTP, RTMP, RTMPS, RTSP, RTP, UDP, TCP, Multicast, Unicast etc.HDMI SRT encoderDDMALL is a proud member of SRT Alliance. It delivers secure, reliable, and high-quality streaming solution over noisy or unpredictable networks.One-Click to go liveSupport one-click to start or stop live streaming by pressing the set button on the HDMI IP encoder. It is vital to instantly start or stop the streaming at any time in many live broadcast events.4K local loopout encoder4K@60Hz HDMI Input, Real Time 4K@60Hz Local Loopout with zero delay. You can connect the encoder to your local monitor to review your live video status.You can easily control the IP encoder via domain remotely on public Internet and set up video transmission without any third-party live platform getting involved.Specifications· Video Codec: H.265/HEVC, H.264/AVC· Supported Streaming Protocol: SRT, HLS, RTMP, RTMPS, RTSP, RTP over UDP, RTP over TCP, TS, Multicast, Unicast.· Supported Input Resolutions: 4096×2160p@60/30Hz, 3840×2160p@60/30Hz, 1920×1080p@60Hz/50Hz/30Hz, 1920×1080i@60Hz/50Hz, 1280×720p@60Hz/50Hz/30Hz· Supported Encoding Output Resolutions: 1080p@30Hz, 720p@60Hz/30Hz, 960×720@60Hz, 960×540@60Hz, 640×480@60Hz, 360×200@60Hz· Supported True 4k loopout Resolution: 4096×2160p@60/30Hz, 3840×2160p@60/30Hz, 1920×1080p@60Hz/50Hz/30Hz, 1920×1080i@60Hz/50Hz, 1280×720p@60Hz/50Hz/30Hz· Adjustable Video Bitrate: 128Kpbs~16Mpbs (CBR/VBR/AVBR/FixQP Controlling Mode) Manual bitrate supported· TTL value is adjustable· Audio Codec: AAC, G.711u· Key Frame Interval (GOP) is tunable· Compression profile: BaseLine, Main, High
